Facilitation of the deep geothermal project Rupertiwinkel

The aim of the Geothermie Rupertiwinkel project is to generate clean renewable electricity and heat by using the geothermal energy stored deep in the depth. Rupertiwinkel is located in the south-easternmost part of Bavaria, between Lake Chiemsee and Lake Königssee. The energy from geothermal energy is available to the people in the area around the clock, regardless of the weather.

G.E.O.S. started out in the project by conducting the pre-feasibility study. Based on this study, G.E.O.S. carried out a complex feasibility study for a deep geothermal doublet. This was later extended to a double doublet.

While the initial aim was to supply the city of Salzburg with geothermal heat, the project was later focused on electrical power generation. In addition, a local heating supply for the surrounding communities was planned.

Since then, the entire project has been continuously accompanied by G.E.O.S. through the provision of extensive services.

Services

  • Pre-feasibility study
  • Feasibility study first for a doublet (Salzburg AG), later extended for a doublet (Marubeni Europower/Geothermie Rupertiwinkel GmbH/GTR) incl.
    • Interpretation of the 3D seismic
    • Development of a 3D-geological model
    • Stress field analysis and geomechanical stability analysis
    • Identification, evaluation and selection of potential targets first for a doublet, later for a double doublet
    • Optimisation of the drilling paths for a doublet and preparation of a cost estimate
    • Development of an ECLIPSE geothermal reservoir model
    • Geothermal simulations for various scenarios and demonstrating the sustainable usability of the geothermal doublet
  • Estimates for the exploration risk for the probability of success (POS) study for the backfill and temperature as well as for the thermal and electrical power with consistent separation of geological and technical parameters
  • Preliminary EIA assessment
  • Assessment for the Site Selection Act
  • Main operating plan for the general contractor H. Angers & Söhne Brunnenbaugesellschaft mbH
  • Special operating plan for drilling
  • OHS investigations for the drilling site construction
Auftraggeber:

Salzburg AG, Geothermie Rupertiwinkel GmbH

Laufzeit:

2014-2015 bzw. 2018-2020

Ansprechpartner bei G.E.O.S.:

Dr. René Kahnt
Tel.: +49 (0)3731 369-407
E-Mail: r.kahnt@geosfreiberg.de

  • Rupertiwinkel in Bavaria

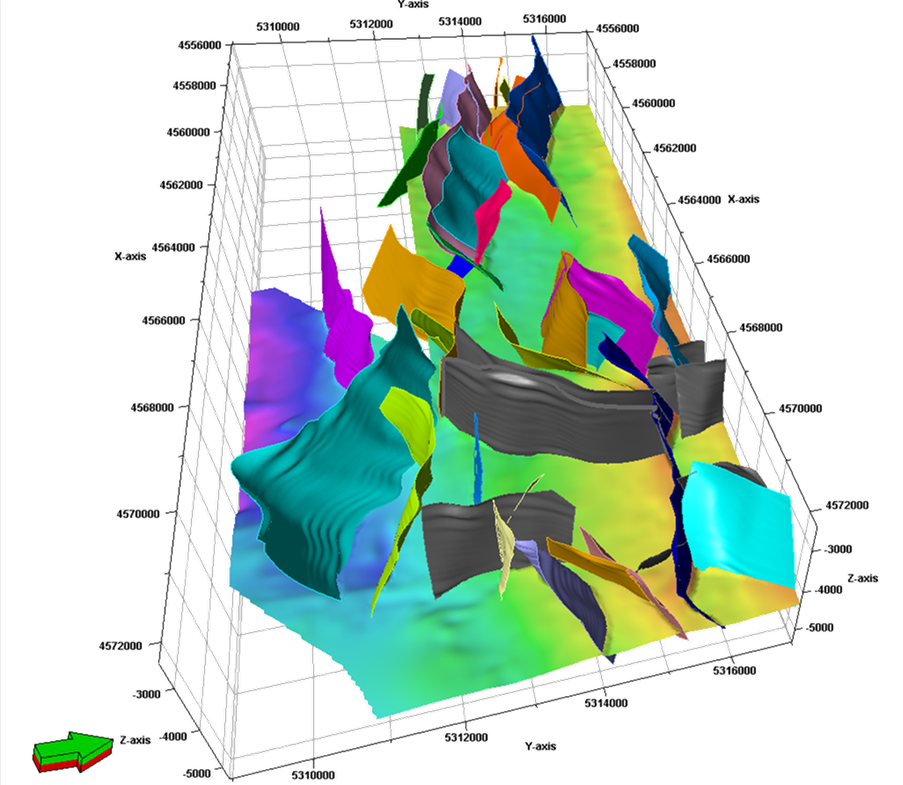

  • 3D screenshot of the fault model as a result of the seismic interpretation
